MS004
Test bench for diagnostics of alternators, starters and voltage regulators
The MS002А is a multifunctional diagnostic test bench designed for the rapid and precise diagnosis of alternators, starters, and alternator voltage regulators for passenger and commercial vehicles.
Manufacturer:
MSG Equipment
Overview
Application:
- The evaluation of the technical condition of 12/24 V automotive alternators at the loads 100A and 50A respectively.
- The diagnostics of performance capacity of voltage regulators separately from alternators.
- The evaluation of the technical condition of 12/24 V starters with the power up to 4 kW at idle.
Features:
- Compact dimensions, suitable for desk, power supply from single-phase 230 V network.
- Convenient mounting of a unit and its drive – without extra tools.
- Smooth adjustment of alternator rpm and load current.
- Diagnostics of alternators that don’t have the integrated voltage regulators.
- Electronic self-protection prevents the bench electronic components from damages if the unit’s connected wrong.
Supply voltage, V
230
Power consumption, kW
2.2
Software update
no
Quantity of storage batteries
2 по 12В
Battery model (not included into supply slip)
capacity from 45 up to 60 A·h and dimensions (L x W x H) not exceeding 207Ч175Ч175 mm
Storage battery charging No.1
yes
Storage battery charging No.2
no
Rated voltage of the diagnosed units, V
12, 24
Load on alternator
12 В - 100 А, 24 В - 50 А
Load adjustment (0-100%)
smoothly
Drive speed, rpm
from 0 to 3000
Drive speed adjustment
smoothly
Drive type (unit drive)
V-belt drive/Poly V-belt drive
Типы проверяемых генераторов 12В
Lamp, COM (LIN, BSS), P-D, RLO, C, SIG, F/67
Типы проверяемых генераторов 24В
Lamp, COM (LIN)
Типы проверяемых генераторов 48В
doesn't test 48 V
Power of diagnosed starters, kW
up to 4
Control
mechanical controls
Automatic alternator test mode
no
Alternator database
no
Saving diagnostic results
no
Printing of diagnostic results
no
Internet connection
no
Connection of peripheral devices
no
Width, m
0,57
Depth, m
0,505
Height, m
0,45
Weight, kg
80
Selecting the direction of rotation of the drive
available
Short-circuit protection during voltage regulator test
yes
Types of diagnosed voltage regulators
Lamp, COM (LIN, BSS), P-D, RLO, C, SIG
Voltage regulators database
no
Power supply
single-phase electrical network
Automatic starter test mode
no

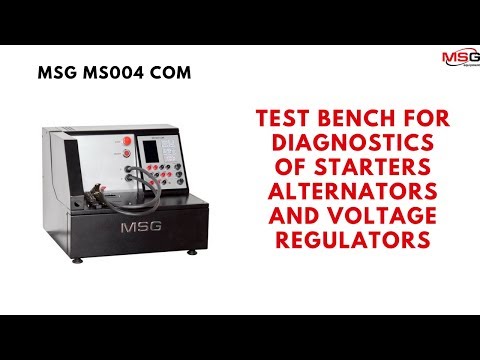

Video overview

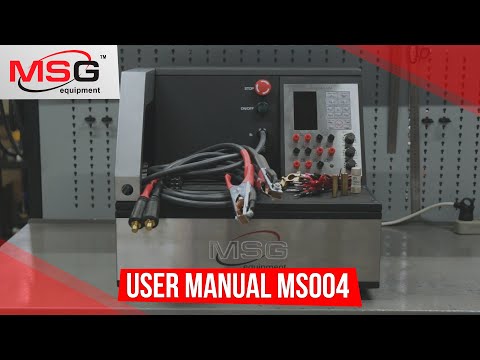

Related videos
Comparison table
Supply voltage, V
230
400
230
400
400
400
Power consumption, kW
2.2
7.5
1.5
4
5.5
7.5
Software update
no
yes
yes
yes
no
yes
Quantity of storage batteries
2 по 12В
2 по 12В
no
2 по 12В
2 по 12В
2 по 12В
Battery model (not included into supply slip)
capacity from 45 up to 60 A·h and dimensions (L x W x H) not exceeding 207Ч175Ч175 mm
minimum 45 A·h
-
ёмкостью от 45 до 60 А·ч и габаритами (Д×Ш×В) не более: 207×175×175 мм
capacity from 45 up to 60 A·h
minimum 45 A·h
Storage battery charging No.1
yes
yes
-
yes
yes
yes
Storage battery charging No.2
no
yes
-
yes
no
yes
Rated voltage of the diagnosed units, V
12, 24
12, 24, 48
12, 24
12, 24
12, 24
12, 24
Load on alternator
12 В - 100 А, 24 В - 50 А
12 V - 300 А, 24 V - 150 А, 48 V - 50 А
12 В - 50 А, 24 В - 25 А
12 V - 150 А, 24 V - 75 А
12 В - 200 А, 24 В - 100 А
12 V - 300 А, 24 V - 150 А
Load adjustment (0-100%)
smoothly
smoothly
smoothly
smoothly
smoothly
smoothly
Drive speed, rpm
from 0 to 3000
from 0 to 3000
from 0 to 3000
from 0 to 3000
from 0 to 3000
from 0 to 3000
Drive speed adjustment
smoothly
smoothly
smoothly
smoothly
smoothly
smoothly
Drive type (unit drive)
V-belt drive/Poly V-belt drive
V-belt drive/Poly V-belt drive
V-belt drive/Poly V-belt drive
V-belt drive/Poly V-belt drive
V-belt drive/Poly V-belt drive
V-belt drive/Poly V-belt drive
Типы проверяемых генераторов 12В
Lamp, COM (LIN, BSS), P-D, RLO, C, SIG, F/67
Lamp, SIG, RLO, RVC, C KOREA, P-D, G, C JAPAN, COM (LIN, BSS), VALEO «I-StARS»
Lamp, SIG, RLO, RVC, C KOREA, P-D, COM (LIN, BSS), C JAPAN, VALEO «I-StARS»
Lamp, SIG, RLO, RVC, C KOREA, P-D, G, C JAPAN, COM (LIN, BSS), VALEO «I-StARS»
Lamp, COM (LIN, BSS), P-D, RLO, C, SIG, F/67
Lamp, SIG, RLO, RVC, C KOREA, P-D, G, C JAPAN, COM (LIN, BSS), VALEO «I-StARS»
Типы проверяемых генераторов 24В
Lamp, COM (LIN)
Lamp, COM (LIN), PWM, I-ELOOP
L/FR, COM (LIN), I-ELOOP
Lamp, COM (LIN), PWM, I-ELOOP
Lamp, COM (LIN)
Lamp, COM (LIN), PWM, I-ELOOP
Типы проверяемых генераторов 48В
doesn't test 48 V
CAN
doesn't test 48 V
doesn't test 48 V
doesn't test 48 V
doesn't test 48 V
Power of diagnosed starters, kW
up to 4
up to 11
-
up to 6
up to 6
up to 11
Control
mechanical controls
on the 12" touch screen
on the 7" touch screen
on the 7" touch screen
mechanical controls
on the 12" touch screen
Automatic alternator test mode
no
yes
yes
yes
no
yes
Alternator database
no
yes
yes
yes
no
yes
Saving diagnostic results
no
yes
no
yes
no
yes
Printing of diagnostic results
no
available on an external printer (not supplied)
available via external Bluetooth printer (not supplied)
available on an external printer (not supplied)
no
available on an external printer (not supplied)
Internet connection
no
Wi-Fi (802.11 a/b/g/ac), Ethernet
no
Wi-Fi (802.11 a/b/g/ac)
no
Wi-Fi (802.11 a/b/g/ac), Ethernet
Connection of peripheral devices
no
2 x USB 2.0
1x USB 2.0
2 x USB 2.0; 1 х HDMI
no
2 x USB 2.0
Width, m
0,57
0,9
0,57
0,77
0,55
0,9
Depth, m
0,505
0,655
0,49
0,64
0,45
0,655
Height, m
0,45
1,43
0,45
0,5
1,05
1,43
Weight, kg
80
160
41
92
111
160
Selecting the direction of rotation of the drive
available
available
available
available
available
available
Short-circuit protection during voltage regulator test
yes
-
-
yes
yes
-
Types of diagnosed voltage regulators
Lamp, COM (LIN, BSS), P-D, RLO, C, SIG
doesn't test voltage regulator
doesn't test voltage regulator
Lamp, SIG, RLO, RVC, KOREA, P-D, C JAPAN, COM (LIN, BSS)
Lamp, COM (LIN, BSS), P-D, RLO, C, SIG
doesn't test voltage regulator
Voltage regulators database
no
no
no
yes
no
no
Power supply
single-phase electrical network
three-phase electrical network
single-phase electrical network
three-phase electrical network
three-phase electrical network
three-phase electrical network
Automatic starter test mode
no
yes
-
yes
no
yes
