MS006
Test bench for diagnostics of alternators
The MS006 test bench allows for assessing the technical condition of 12/24V alternators in passenger cars and light-duty trucks, as well as 12V start-stop system alternators and "I-ELOOP" (Mazda) systems.
Manufacturer:
MSG Equipment
The test bench is designed for the diagnostics of the 12/24V automotive alternators with the different connection terminals, the 12V alternators of ‘start-stop’ system (Valeo I-StARS) and I-ELOOP alternators (Mazda). The alternator diagnostics mode is either manual or automatic. The results of automatic diagnostics can be printed on the portable Bluetooth printer (not included into the supply slip).
Features:
- Compact dimensions, suitable for desk.
- Power supply from single-phase 230 V network.
- Diagnostics of 12V "start-stop" and I-ELOOP alternators.
- Automatic and manual alternator diagnostics.
- Alternator database.
- Smooth adjustment of alternator speed and load current.
- Printing of the results of automatic diagnostics.
- Convenient bench system of unit mounting.
- Costless software update.
Technical Specifications
Supply voltage, V
230
Power consumption, kW
1.5
Software update
yes
Quantity of storage batteries
no
Rated voltage of the diagnosed units, V
12, 24
Load on alternator
12 В - 50 А, 24 В - 25 А
Load adjustment (0-100%)
smoothly
Drive speed, rpm
from 0 to 3000
Drive speed adjustment
smoothly
Drive type (unit drive)
V-belt drive/Poly V-belt drive
Types of diagnosed alternators 12V
Lamp, SIG, RLO, RVC, C KOREA, P-D, COM (LIN, BSS), C JAPAN, VALEO «I-StARS»
Types of diagnosed alternators 24V
L/FR, COM (LIN), I-ELOOP
Types of diagnosed alternators 48V
doesn't test 48 V
Control
on the 7" touch screen
Automatic alternator test mode
yes
Alternator database
yes
Saving diagnostic results
no
Printing of diagnostic results
available via external Bluetooth printer (not supplied)
Internet connection
no
Width, m
0,57
Depth, m
0,49
Height, m
0,45
Weight, kg
41
Selecting the direction of rotation of the drive
available
Types of diagnosed voltage regulators
doesn't test voltage regulator
Voltage regulators database
no
Power source
single-phase electrical network

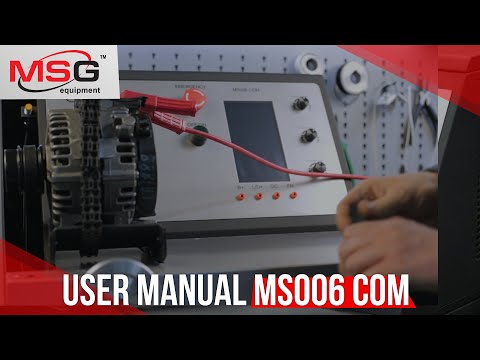

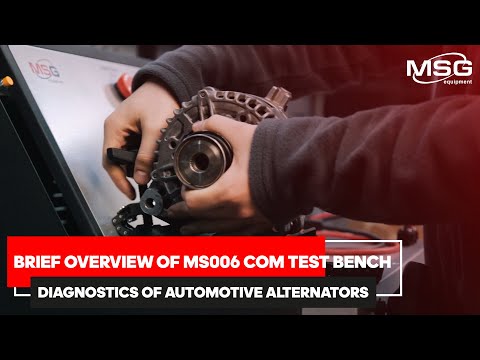

Video overview
Related videos
Comparison table
Supply voltage, V
230
400
400
230
400
400
400
Power consumption, kW
1.5
7.5
5.5
2.2
7.5
5.5
4
Software update
yes
yes
no
no
yes
yes
yes
Quantity of storage batteries
no
2 by 12V
2 by 12V
2 by 12V
2 by 12V
2 by 12V
2 by 12V
Rated voltage of the diagnosed units, V
12, 24
12, 24, 48
12, 24
12, 24
12, 24
12, 24
12, 24
Load on alternator
12 В - 50 А, 24 В - 25 А
12 V - 300 А, 24 V - 150 А, 48 V - 50 А
12 V -200 А, 24 V -100 А
12 V - 100 А, 24 V - 50 А
12 V - 300 А, 24 V - 150 А
12 V -200 А, 24 V -100 А
12 V - 150 А, 24 V - 75 А
Load adjustment (0-100%)
smoothly
smoothly
smoothly
smoothly
smoothly
smoothly
smoothly
Drive speed, rpm
from 0 to 3000
from 0 to 3000
from 0 to 3000
from 0 to 3000
from 0 to 3000
from 0 to 3000
from 0 to 3000
Drive speed adjustment
smoothly
smoothly
smoothly
smoothly
smoothly
smoothly
smoothly
Drive type (unit drive)
V-belt drive/Poly V-belt drive
V-belt drive/Poly V-belt drive
V-belt drive/Poly V-belt drive
V-belt drive/Poly V-belt drive
V-belt drive/Poly V-belt drive
V-belt drive/Poly V-belt drive
V-belt drive/Poly V-belt drive
Types of diagnosed alternators 12V
Lamp, SIG, RLO, RVC, C KOREA, P-D, COM (LIN, BSS), C JAPAN, VALEO «I-StARS»
Lamp, SIG, RLO, RVC, C KOREA, P-D, G, C JAPAN, COM (LIN, BSS), VALEO «I-StARS»
Lamp, COM (LIN, BSS), P-D, RLO, C, SIG, F/67
Lamp, COM (LIN, BSS), P-D, RLO, C, SIG, F/67
Lamp, SIG, RLO, RVC, C KOREA, P-D, G, C JAPAN, COM (LIN, BSS), VALEO «I-StARS»
Lamp, COM (LIN, BSS), P-D, RLO, C, SIG. G, RVC, i-eLoop, F67, VALEO «I-StARS»
Lamp, SIG, RLO, RVC, C KOREA, P-D, G, C JAPAN, COM (LIN, BSS), VALEO «I-StARS»
Types of diagnosed alternators 24V
L/FR, COM (LIN), I-ELOOP
Lamp, COM (LIN), PWM, I-ELOOP
Lamp
Lamp
Lamp, COM (LIN), PWM, I-ELOOP
Lamp, COM (LIN)
Lamp, COM (LIN), PWM, I-ELOOP
Types of diagnosed alternators 48V
doesn't test 48 V
CAN
doesn't test 48 V
doesn't test 48 V
doesn't test 48 V
doesn't test 48 V
doesn't test 48 V
Control
on the 7" touch screen
on the 12" touch screen
mechanical controls
mechanical controls
on the 12" touch screen
on the 7" touch screen
on the 7" touch screen
Automatic alternator test mode
yes
yes
no
no
yes
yes
yes
Alternator database
yes
yes
no
no
yes
yes
yes
Saving diagnostic results
no
yes
no
no
yes
yes
yes
Printing of diagnostic results
available via external Bluetooth printer (not supplied)
available on an external printer (not supplied)
no
no
available on an external printer (not supplied)
yes
available on an external printer (not supplied)
Internet connection
no
Wi-Fi (802.11 a/b/g/ac), Ethernet
no
no
Wi-Fi (802.11 a/b/g/ac), Ethernet
yes
Wi-Fi (802.11 a/b/g/ac)
Width, m
0,57
0,9
0,55
0,57
0,9
0,55
0,77
Depth, m
0,49
0,655
0,45
0,505
0,655
0,45
0,64
Height, m
0,45
1,43
1,05
0,45
1,43
1,05
0,5
Weight, kg
41
240
111
80
160
111
92
Selecting the direction of rotation of the drive
available
available
available
available
available
available
available
Types of diagnosed voltage regulators
doesn't test voltage regulator
doesn't test voltage regulator
Lamp, COM (LIN, BSS), P-D, RLO, C, SIG
Lamp, COM (LIN, BSS), P-D, RLO, C, SIG
doesn't test voltage regulator
Lamp, COM (LIN, BSS), P-D, RLO, C, SIG, G, RVC
Lamp, SIG, RLO, RVC, KOREA, P-D, C JAPAN, COM (LIN, BSS)
Voltage regulators database
no
no
no
no
no
yes
yes
Power source
single-phase electrical network
three-phase electrical network
three-phase electrical network
single-phase electrical network
three-phase electrical network
three-phase electrical network
three-phase electrical network
Battery model (not included into supply slip)
-
minimum 45 A·h
capacity from 45 up to 60 A·h
capacity from 45 up to 60 A·h and dimensions (L x W x H, mm) not exceeding 207×175×175
minimum 45 A·h
capacity from 45 up to 60 A·h
capacity from 45 up to 60 A·h and dimensions (L x W x H, mm) not exceeding 207×175×175
Storage battery charging No.1
-
yes
yes
yes
yes
yes
yes
Storage battery charging No.2
-
yes
no
no
yes
yes
yes
Power of diagnosed starters, kW
-
up to 11
up to 6
up to 4
up to 11
up to 6
up to 6
Connection of peripheral devices
-
2 x USB 2.0
no
no
2 x USB 2.0
1 x USB Type-A
2 x USB 2.0; 1 х HDMI
Automatic starter test mode
-
yes
no
no
yes
no
yes
Short-circuit protection during voltage regulator test
-
-
yes
yes
-
yes
yes
Training course on diagnostics and repair of starters and alternators
A hands-on course designed to train technicians in diagnosing and restoring starters and alternators. You'll learn about common faults, gain experience using MSG Equipment diagnostic tools, and develop the skills to perform high-quality repairs on modern automotive starters and alternators.
Click the link to learn more about the course
