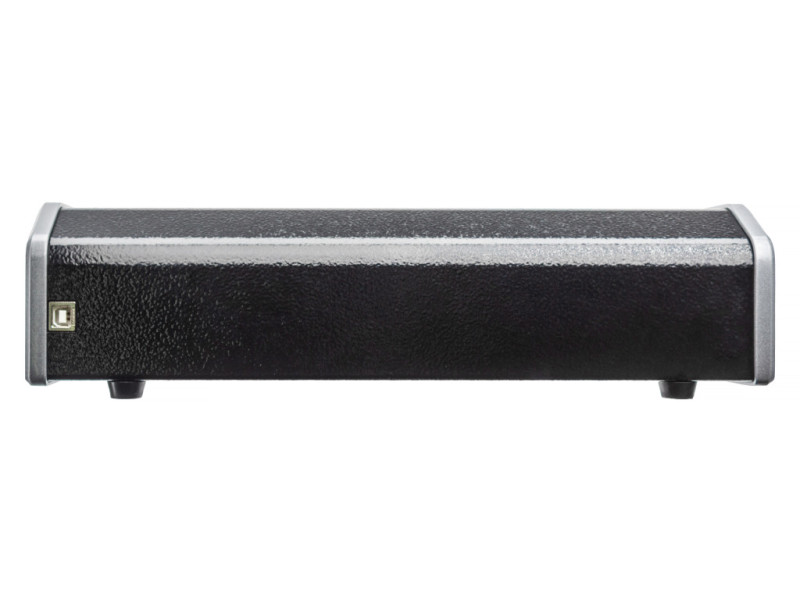

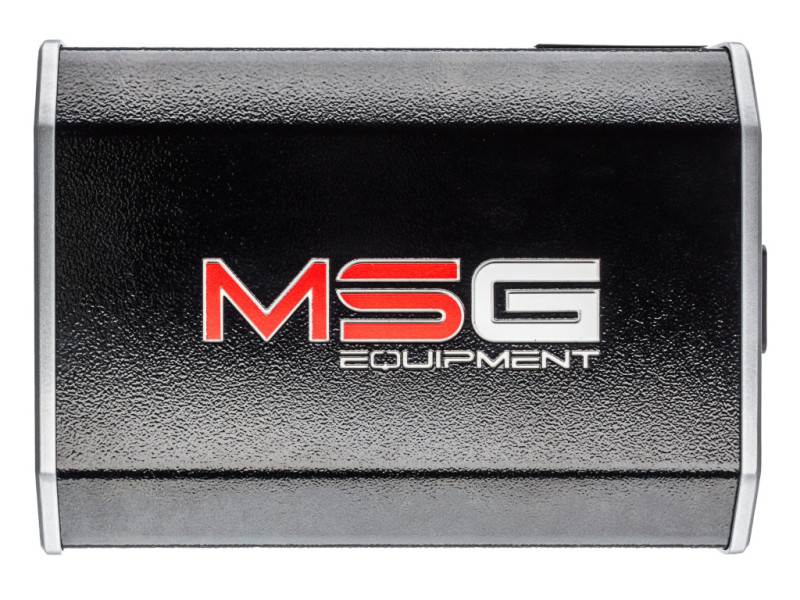

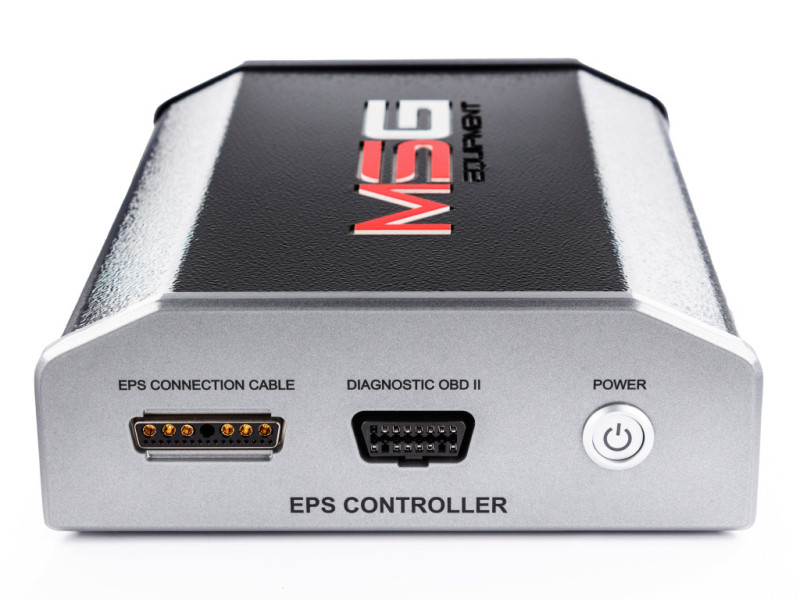

MS561 PRO
Tester for diagnostics of electric power steering units

The MS561 PRO tester is designed for diagnosing electric power steering (EPS) components removed from vehicles, including steering racks, columns, and pumps. It supports all data transmission protocols, such as CAN, CAN-FD, FlexRay, two independent CAN buses, as well as connection of components controlled via PWM. The tester's software is continuously updated, expanding the database of diagnosable components and adding new diagnostic capabilities.
Manufacturer: MSG Equipment

The MS561 PRO tester is used for diagnosing and repairing EPS steering racks, columns, and electric hydraulic power steering (EHPS) pumps. The tester also allows diagnosing torque sensors separately from the steering rack. It simulates a car for the electric power steering, enabling it to run independently of the vehicle’s electrical system (on a bench mode) and obtain the necessary diagnostic information:

  • Current consumption on two terminals K15 (ignition) and K30 (motor), additionally showing the correct (normal) current consumption for the unit under test;
  • Current ("live") data from the control unit;
  • DTC error list, with the ability to erase them;
  • Unit information: VIN, hardware version, software version, etc.

The tester also features a set of special functions* for repairing electric power steering systems:

  • Flash programming (allows clearing errors that cannot be erased by regular error deletion). Relevant for Ford, Audi, VW, Porsche.
  • Parameter loading (allows configuring the steering rack for a specific vehicle.). Relevant for VAG group.
  • VIN change for GM racks.
  • Virginizing – clearing the rack’s association with a vehicle (allows installing racks from another vehicle). Relevant for Renault/Nissan.
  • EEPROM reading/writing.
  • Software restoration of faulty control units.

* The list of units with available special functions depends on the specific unit and vehicle. This list is constantly expanded with new tester software updates.


Features:

  • Compatibility with any data transmission protocols.
  • Dynamic CAN indication, allowing real-time monitoring of the correctness and integrity of the connection to the power steering system.
  • Unit database with OEM number search capability.
  • Displays the pinout of the unit connector for correct connection to the tester.
  • Non-standard OBDII connector pinout can be set.
  • Diagnosis of units with a maximum current consumption of 100A.
  • Regular software updates.
Technical Specifications
Supply voltage, V
230
Power consumption, kW
2
Software update
available
Output current, A
до 100
Simulated signals
- ignition on; - engine running; - vehicle speed; - steering wheel speed.
Working with data buses
CAN, CAN-FD, FlexRay
Types of protection
- short-circuit protection; - overload; - overheating.

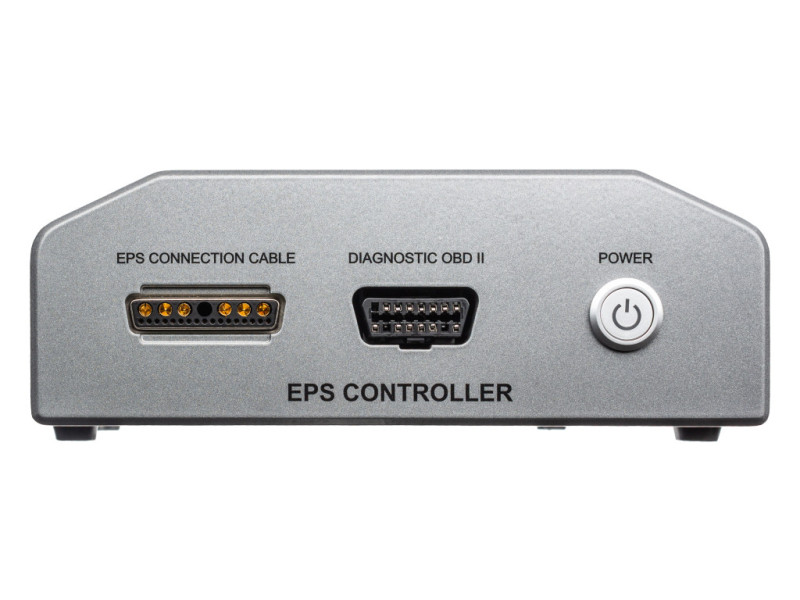

Connecting the diagnostic scanner
OBDII
Connection to a PC
USB/Bluetooth
Width, m
0,255
Depth, m
0,355
Height, m
0,093
Weight, kg
8
Power source
single-phase electrical network
Video overview
Related videos
Превью видео
Превью видео
Превью видео
Training course on diagnostics and repair of electric power steering units
A practical course that provides an understanding of how electric power steering (EPS) systems work, teaches how to identify faults, use measuring instruments, and perform diagnostics and repairs of EPS units. The course also covers software tools for coding, adaptation, and calibration of control units.
Click the link to learn more about the course
Related Products
MS410
EPS cable organizer
A storage system for EPS cables allows the following: to arrange diagnostic cables in order; to find quickly the necessary cable; to keep a workplace tidy and well-arranged; to pro...
MS570
Electronics repair table
MS570 – a table for electronics repair specialists is designed for quality workplace arrangement. Advantages:The table is adapted to accommodate controller MS561 for EPS diagnostic...
MS-39000
Universal FlexRay control module
The MS-39000 cable is designed to connect a power steering system controlled via FlexRay bus to the MS561 PRO tester for diagnostics. The cable includes a set of transition wires,...
Vehicle coverage
AUDI, BENTLEY, BMW, JAGUAR, LAND ROVER, MERCEDES-BENZ, MINI, PORSCHE, TOYOTA, VW
Vehicle coverage
AUDI, BENTLEY, BMW, JAGUAR, LAND ROVER, MERCEDES-BENZ, MINI, PORSCHE, TOYOTA, VW
The equipment complete set includes:
test

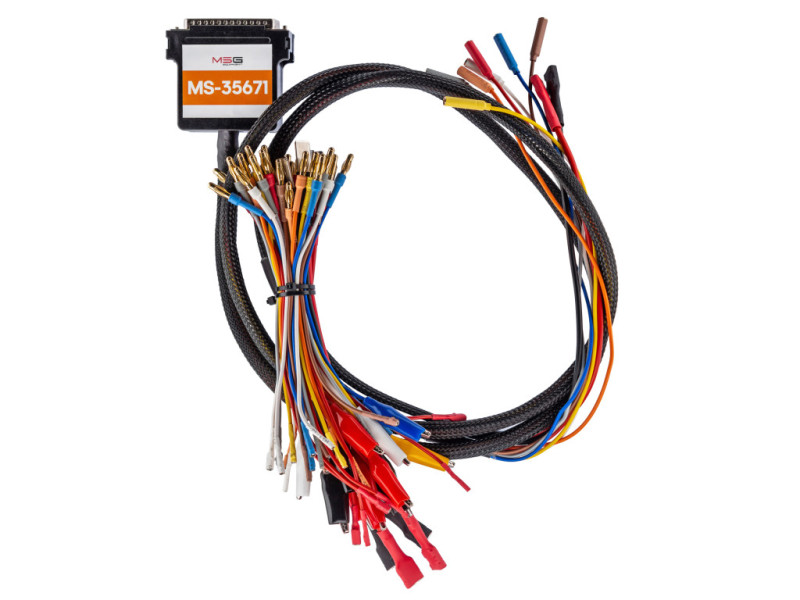

MS-35671 Universal cable for EPS diagnostics
1 pcs
Materials about MS561 PRO to download:
Format
Name
Latest update
Frequently Asked Questions about MS561 PRO:
1. 1. Which units and makes are supported?

The MS561 PRO database includes over 500 units fitted to more than 3,000 vehicle models. Supported makes:

  • VW, Audi, Skoda, Seat, Porsche;
  • BMW and MINI, Mercedes-Benz;
  • Ford and Lincoln, GM, Opel and Chevrolet;
  • Fiat, Alfa Romeo, Jeep, Chrysler and Dodge;
  • Renault, Nissan, Dacia and Infiniti;
  • Volvo, Polestar, Jaguar and Land Rover;
  • Toyota, Mazda, Honda, Subaru, KIA, Hyundai and Tesla.

Programs are also available for rear-wheel steering racks on premium vehicles. New units are added with every software update.

2. 2. What diagnostic functions are available?
  • Power supply with real-time current measurement and comparison against reference values of a known-good unit.
  • Reading unit identification data: part numbers, software version, VIN.
  • Reading and clearing fault codes with descriptions.
  • Live data: steering torque, angle, temperature, voltage, and more.
  • Vehicle motion simulation (vehicle speed and steering wheel speed) to check how steering effort changes.
  • For selected units: flashing, coding, parameterization, VIN writing, service procedures (torque sensor learning, end-stop calibration, etc.), vehicle binding reset for Renault and Nissan, and conversion from LHD to RHD and back.

The set of functions depends on the specific unit and is listed in its program.

3. 3. Can units be flashed and coded?

Yes, many of them.

  • Flashing is available for VAG, Ford, Volvo and Jaguar Land Rover, among others, as well as for some BMW units.
  • Vehicle-specific coding is supported for Ford, BMW, Volvo, Jaguar Land Rover, some Mercedes-Benz units, and other makes.

The operations available for a specific unit are shown in its program.

4. 4. Can a unit be tested directly on the vehicle?

The MS561 PRO is designed primarily for bench testing of removed units. It can also be connected on the vehicle, but only after the unit has been disconnected from the vehicle's onboard network. On the bench, the MS561 PRO performs diagnostics and, for supported units, flashing and coding as well. Calibration after installation is performed on the vehicle only, using a standard diagnostic scan tool.

5. 5. Do I need a separate diagnostic scan tool?

For most units, the built-in MS561 PRO diagnostics are sufficient. A conventional scan tool is needed in two cases: for certain units that do not yet have built-in diagnostics, and for calibration after installation on the vehicle.

The tester has an OBDII connector that accepts any customer scan tool, either dealer-level (ODIS, ESYS, IDS, VAS5054, etc.) or aftermarket (Bosch KTS, Autel MaxiSys, etc.). The scan tool sees the unit as if it were installed in the vehicle.

6. 6. What is automatic OBD pinout switching?

Different manufacturers route diagnostic lines to different pins of the OBD connector, and a dealer scan tool looks for them where its make normally places them. When you select a program, the MS561 PRO automatically switches the pins for the required make, so the scan tool connects just as it would on the vehicle, with no adapters. In non-standard cases, pin assignment can be changed manually.

7. 7. Can a rack be tested under load?

Yes. The MS561 PRO can be used together with the MS521 load test bench, which simulates wheel resistance. Under load, you can see faults that do not show up without load.

8. 8. Can I give the customer a test report?

Yes. The MS561 PRO generates a PDF report that includes unit identification data, fault codes, the current graph, and selected live data. The report is generated in the program language; 17 languages are available (see question 20).

9. 9. How do I connect a unit to the tester?

There are two ways: with a dedicated cable that plugs into the unit connector, or with the universal cable, wired manually according to the photo wiring diagram in the unit card. FlexRay units are connected via the MS-39000 module. The program tells you which cable to use and shows the connection diagram.

10. 10. What's in the box?

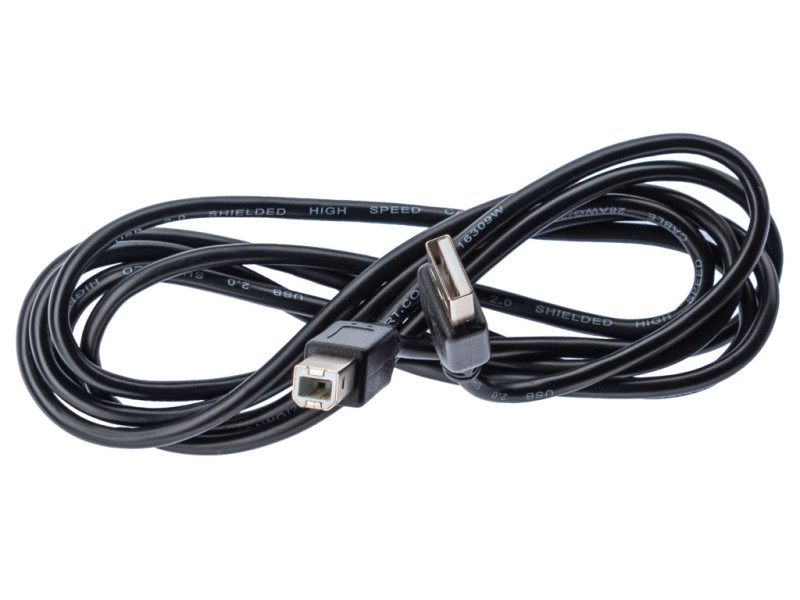

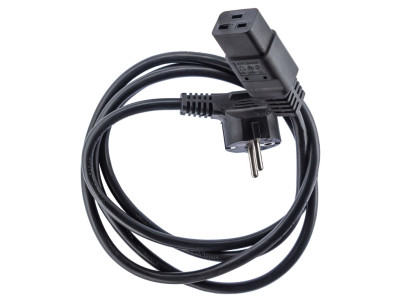

MS561 PRO tester, MS-35671 universal cable, power cable, USB cable, and a card with a QR code linking to the user manual. The software comes with programs activated for all units in the database at the time of purchase. While your subscription is active, all new programs become available as well.

11. 11. Which units can be tested with the universal cable and which cannot?

The universal cable works with most CAN- and PWM-controlled units — about 80% of the database. It is not suitable for:

  • FlexRay units;
  • some pumps with non-standard control signals;
  • units with two CAN buses on separate connectors;
  • racks with a remote-mounted control unit (typical of Japanese vehicles).

These require dedicated cables. The unit card shows whether the universal cable is suitable.

12. 12. Why buy dedicated cables if there is a universal one?

A dedicated cable eliminates connection errors, saves time, and protects the unit: an incorrect connection with loose wires can damage the electronics. We recommend that less experienced technicians use dedicated cables only.

13. 13. How is the cable range organized?

Cables are labeled by unit type:

  • R — steering racks;
  • C — steering columns;
  • P — pumps;
  • S — torque sensors.

For FlexRay, the universal MS-39000 module is used with a set of adapters for BMW, MINI, Mercedes-Benz, Audi, Porsche, Jaguar and Land Rover. In total, more than 170 cables are available for the MS561 PRO.

14. 14. How do I choose the right cable for my unit?

Find the unit in the program by the OEM number on its housing. The unit card shows the required cable, applicable vehicles, and a photo of the unit. If in doubt, send the OEM number and photos of the connectors to your sales manager, and we will select the cable for you.

15. 15. What is FlexRay, and why does it need a separate module?

FlexRay is a data bus used in premium BMW, MINI, Mercedes-Benz, Audi, Porsche, Jaguar and Land Rover vehicles. Working with these units requires the MS-39000 module and a software package for the corresponding vehicle platform; packages are sold separately. The module simulates a FlexRay vehicle for the unit, while the program shows whether the unit has come online and displays steering angle and torque. The module firmware is updated automatically together with the MS561 PRO software.

16. 16. How do I find a unit if I don't know which vehicle it came from?

Enter the OEM number from the unit housing in the program. You can also search by vehicle model. The unit card shows photos, a list of vehicles, model years, the required cable, and the available functions.

Note: a unit may carry several numbers; VAG racks, for example, can have from 2 to 8. Search by the number on the unit housing, not on the control unit.

17. 17. My unit is not in the database. What should I do?

Contact MSG Equipment technical support. A program for your unit may already be in development, or it can be added on request.

18. 18. What computer do I need?
  • Windows 10 64-bit or later.
  • Intel Core i3 8th Gen or AMD Ryzen 5 processor or better.
  • 8 GB RAM or more.
  • 15" or larger Full HD display.

The tester connects to the computer via USB (recommended) or Bluetooth.

19. 19. Do I need a permanent internet connection?

No. The tester works offline for the entire paid subscription period. Internet access is required only for activation, subscription renewal, and downloading updates.

20. 20. What languages is the program available in?

The program interface and PDF report are available in 17 languages: English, Ukrainian, Russian, Belarusian, Polish, German, French, Italian, Spanish, Portuguese, Czech, Turkish, Arabic, Chinese (Simplified and Traditional), Japanese, and Korean. The language is selected in the program settings.

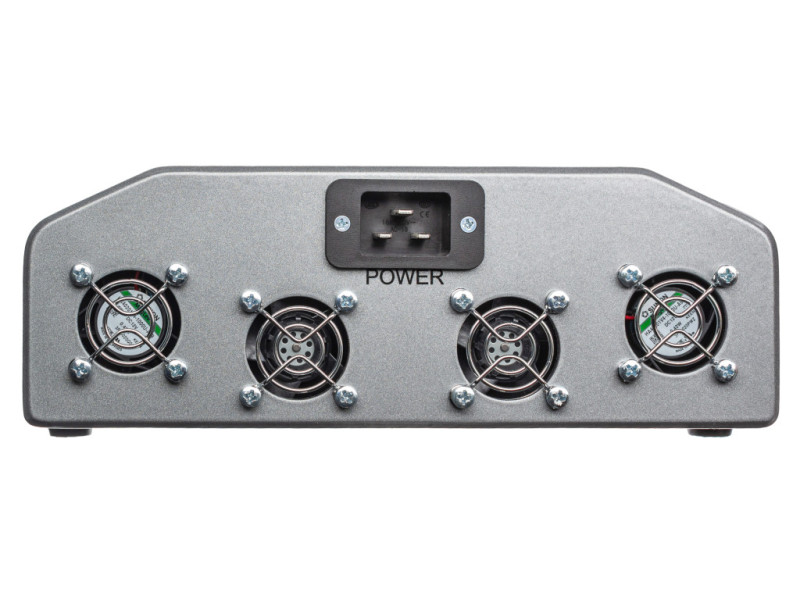

21. 21. What are the power supply requirements?

Single-phase 230 V grounded supply with a 16 A circuit breaker. The tester delivers up to 100 A to the unit. Thanks to the built-in power supply, units can be tested without external batteries. The tester weighs 8 kg.

22. 22. Is the tester protected if a faulty unit is connected?

Yes. The tester is protected against short circuit, overload, and overheating. The current protection threshold is set individually for each unit, and power is cut off automatically if it is exceeded.

Need Further Assistance?
If you can't find the answer you're looking for, our manager is here to help. Contact us for prompt assistance.
Firmware update history:
Version
Release date
5.3.1.1
19.05.2026

Major New Features

  • New tab — Coding — visual editor for AsBuilt / coding fields (starting with Ford FO417 / FO430).
  • New tab — Scripting / Console — run custom UDS scripts directly from the program (C# syntax, sandboxed).
  • BMW EPS — programming now works fully end-to-end: both flash and CAFD coding on the bench.
  • Programming tab fully redesigned — universal layout, per-slot checkboxes, custom-file filter per rack, unified Download path.
  • Test reports — save and print bench-test reports.
  • "Report an Issue" button — one-click feedback straight from the UI.
  • FlexRay and EPS / Pumps tabs merged into a single selection page.

Platform & Program Support

  • VAG (VW / Audi / Skoda) — on-bench parametry (modern ODIS-style), dual-section flash fixes (VW416 / VW417), correct timings and progress indication.
  • Ford — all programs consolidated into one universal flash flow. FO432 EEPROM write implemented.
  • FlexRay — cables and firmware thoroughly reworked.
  • USB / Bluetooth — bulk uploads significantly faster.

New programs:

  • ZK401 — new
  • FI401 — fixes

Live Data / Diagnostics

  • Statistics view reworked
  • DTC descriptions added
  • Mass update: descriptions now match the ODIS dealer scanner for AU402, AU404, AU405, AU406, AU407, AU409, AU411, AU414, AU415, AU417, AU901, SK401, SK701, VW402, VW415, VW416, VW417, VW419, VW421, VW423, VW424, VW425, VW427, VW433, VW434, VW439, VW443, VW701, VW702

UI & Misc

  • Editable K30 / K15 reference values
  • Fixed truncated version string in the status bar
  • New multi-language online user manual

Support for New AUDI Racks (PPE / PPC platforms, from 2024)*

  • AU414 — AUDI A6 E-TRON [2025-]
  • AU415 — AUDI Q6 E-TRON [2024-]
  • AU416 — AUDI A5 [2024-]
  • AU417 — AUDI A6 [2025-]

*Requires the new FR014 software.

Known Limitations

  • FO425 with new bootloader revisions (AE5C-BD / AE5C-AL) — EEPROM read/write blocked by the rack's bootloader. Older FO425, as well as FO417 / FO405 / FO421, work as before.
5.1.2.7
12.07.2025

New steering units:

  • KI401 KIA EV6 2021-
  • SK701 SKODA Octavia A8
  • VO406 VOLVO C40 [2021-], POLESTAR Polestar 2 [2019-]
  • FI401 FIAT Ducato 2014- (Only Identification + DTC)
  • FO708 Ford Transit Courier 2023- (Only Ident+DTC, SECOC!)
  • FO431 FORD Flex, Taurus (AA53 firmwares)
  • FO425 FORD USA Fusion 2010-2012 (AE5C firmwares)

Diagnostic functions for:

  • PE303, PE313 – Peugeot/Citroen pumps
  • PE405 PEUGEOT 207

Added programming and firmwares for:

  • VW417, VW416 – Parametrization (Dataset uploading)
  • FO705 FORD Focus 4 (JX6C firmwares) +AS Built
  • FO706 FORD Kuga 3 / Escape (LX6C firmwares) +AS Built
5.1.2.4
28.05.2025

Diagnostic functions for:

  • SK302 VW Polo / Skoda Fabia, etc…

DTC, Identification, Live data, Coding, Sensor switching

5.1.2.3
23.05.2025
  1. Fixed some bugs
  2. New steering units:



  • RI401 Rivian R1S, R1T (With DTC reading function)
  • TY407 Toyota Highlander 2019-
5.1.2.2
20.05.2025

EEPROM read/write functions for:

  • VW416 VW Passat B8 (Development code 1 DTC fixing)
5.1.2.1
15.05.2025

Diagnostic functions for:

  • VW417 VW Crafter (Programming, DTC, Live data)

EEPROM read/write functions for:

  • LR402 Land Rover Sport & similar ECUs
  • FI711, FI713, JP701, JP702, JP703 (C1009 DTC fixing)
5.1.1.1
27.03.2025

New steering units:

  • VW301 VW Touareg hybrid 11-17; Porsche Panamera, Cayenne
  • RE401 Renault Kangoo 3 2021-
  • AC405 ACURA RDX 2018-
  • CH403 CHRYSLER PACIFICA 17-
  • FO707 Ford Mustang Mach-e
  • TY412 Toyota Venza 20-

Diagnostic functions for:

  • TS404 Tesla Model 3/Y
  • TS405 Tesla Model S/X
  • FI711 Fiat Tipo/Egea

Special functions:

  • VW415 – Converting eeprom dumps from/to LHD<->RHD
  • RE703 – VIN reading/writing, Virginizing
  • FI711 – Steering angle calibration
5.1.0.1
13.03.2025

New steering units:

  • CI406 TOYOTA ProAce City 19-; PEUGEOT Rifter 18-; CITROEN Berlingo 19-
  • AR702 ALFA ROMEO TONALE 2023-; DODGE HORNET 2022-

Diagnostic functions for:

  • FI711 Identification / DTC + Steering angle calibration

Added programming and firmwares for:

  • FO434 Ford Transit 2017-   (+Programming ASBuilt calibrations)
  • JA401 Jaguar F-pace
  • VW416 VW Passat B8

EEPROM read/write functions for:

  • VW415 VW Golf7, etc...
  • DG401 DODGE CHARGER / CHALLENGER
  • DG403 DODGE DURANGO / JEEP GRAND CHEROKEE 17-
  • DG404 DODGE RAM 19-

VIN read/write for:

  • CH401 Chrysler 200
  • JP401 JEEP Cherokee KL
  • DG405 DODGE Dart
5.0.0.13
31.01.2025
  • Added programming and firmwares for FO405 FORD Connect (18-22)
  • New Flexray Firmware (00014) - Fix for Mercedes AMG versions couldn't start
5.0.0.10
14.01.2025
  • Fixed DG402 picture
  • Added Live data for PH402 (Porsche Macan)
  • Added DTC description for AU406, AU409 (All flexray AUDI)
5.0.0.8
07.01.2025

New steering units:

  • IN403 Infiniti QX50 18-
  • SU410 Subaru Outback 19-
  • IN302 Infiniti Q70 (13-19)
  • JP303 JEEP WRANGLER IV JL (17-)
  • FI303 FIAT DUCATO (14-)
  • NI405 NISSAN Qashqai (21-) +VIN Virginizing

Diagnostic features (Identification / DTC / Live data*) for:

  • All Audi / Porsche
  • All Flexray BMW
  • All Flexray Mercedes-Benz
  • FO422 Ford Ranger + programming
5.0.0.7
31.12.2024

Added support for new universal CAN-FD Cable MS-35671

5.0.0.6
11.11.2024

New Flexray Firmware (00013) - Fix for Mercedes W222

5.0.0.2
05.09.2024

Fords Diagnosing and Programming for FO414 (Focus 3), FO417 (Explorer 10-15), FO430 (Explorer 15-20), FO422 (Mondeo 5 / Galaxy / S-Max).
All necessary functions like ECU Info, DTC Reading / Erasing, Live data / Programming and EEPROM Reading completed.

New steering units:

  • MA707 (MAZDA MX-30) MA404 (MAZDA CX-60) with diagnostic functions

New cables:

  • MS-36102 (145R) for MA404
  • MS-35103 (146C) for MA707

Viewed products
